Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Jiacheng
  • Model Number: rubber gasket
  • Material: Rubber
  • Shape: Flat Gasket
  • Standard or Nonstandard: Nonstandard
  • Material:: 85 degrees NBR, 80 degrees fluorine rubber
  • Standards:: DIN3869, 17 standards in total
  • Sealing Form:: End face seal
  • Work Pressure:: maximum is 60Mpa

Packaging & Delivery

Packaging Details Knock-down package or as each customer required. Neutral packing export standard carton package include EPE Foam.
Delivery Time By T/T,within 7-15 days after received 30% deposit
Product Description

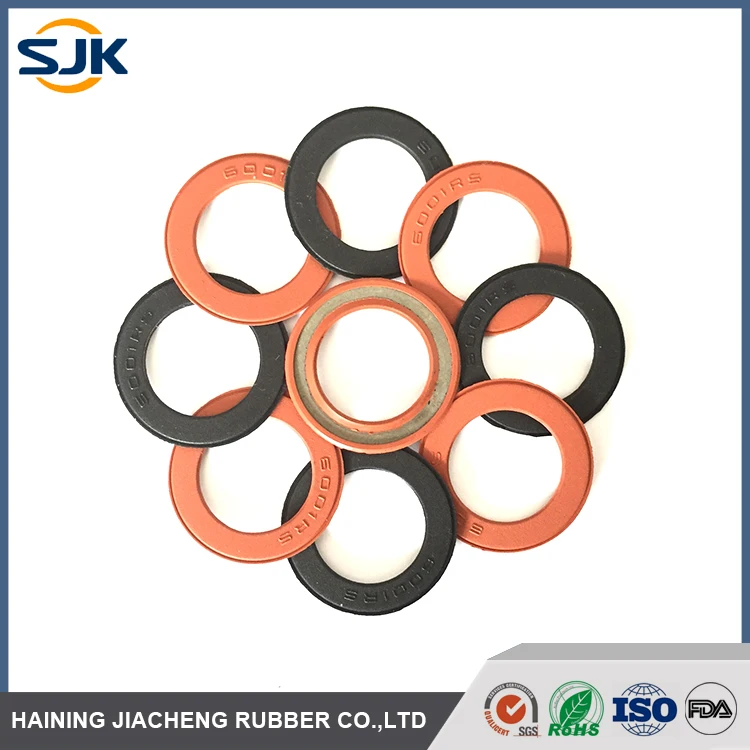

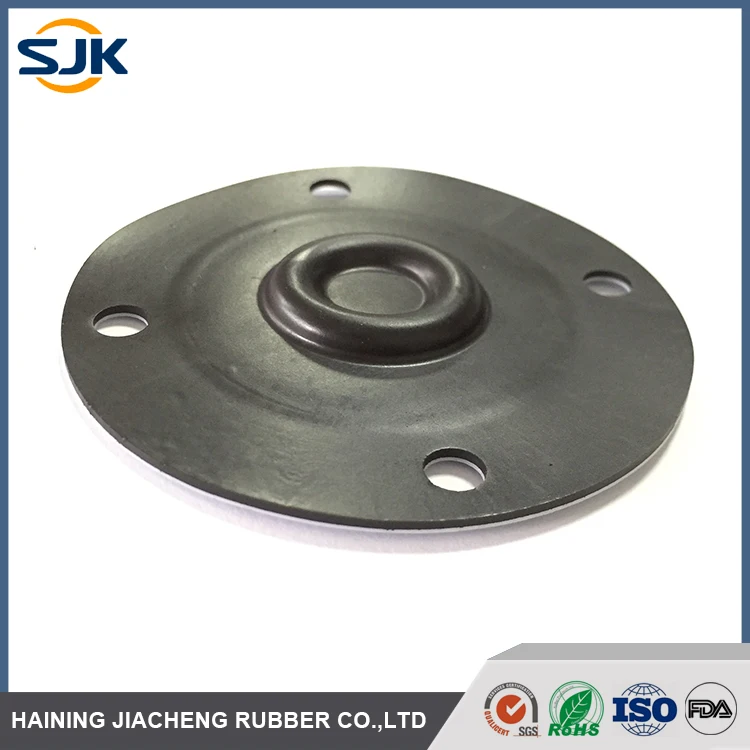

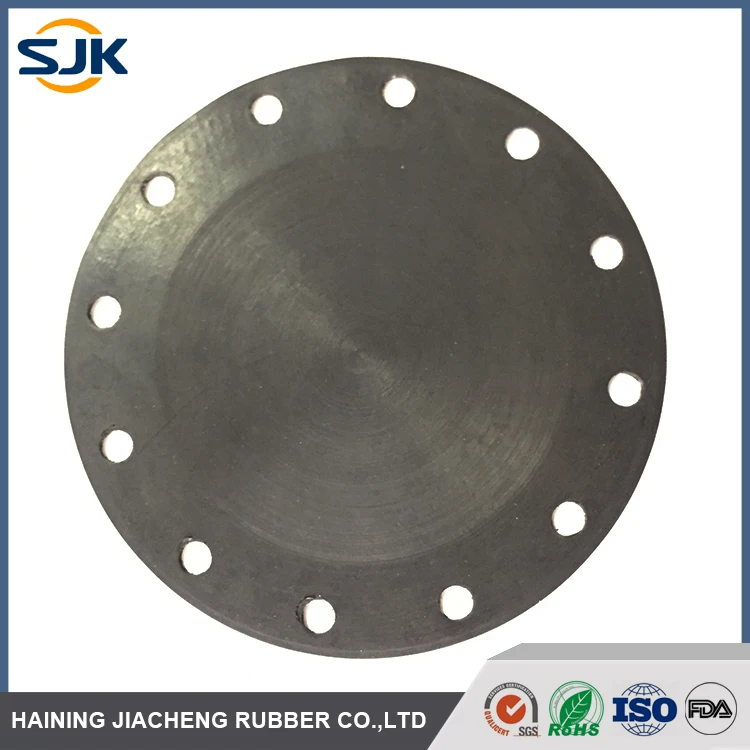

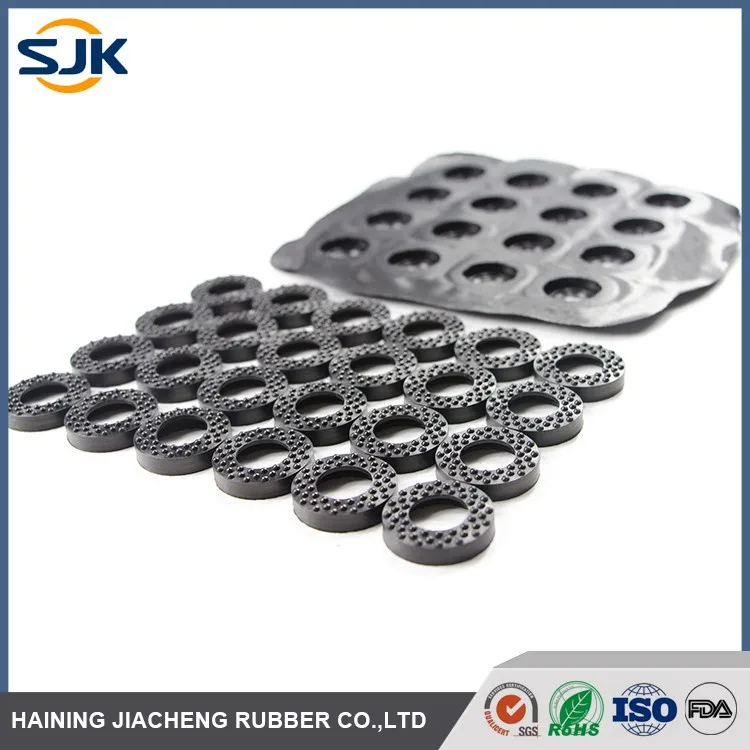

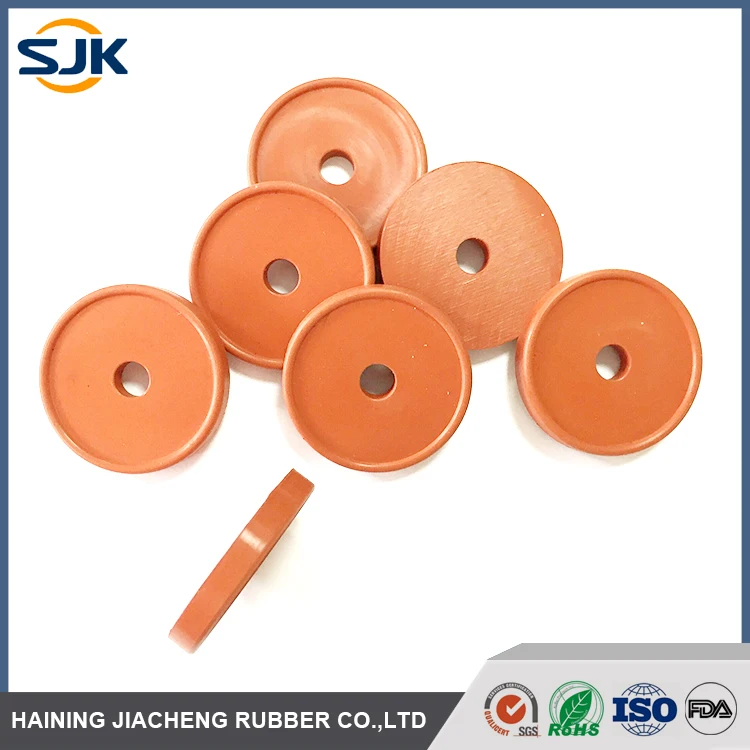

Direct factory top quality FKM, EPDM, NBR, FVMQ, silicone rubber gasket





MaterialPUEPDM
Features

PU is in widely used daily life,

 industrial and agricultural production,

 medicine and other fields.In

the automotive industry used

 in the manufacture of damping

products, in the mechanical industry

used to manufacture seals, belt;

In the medicine field is used to

manufacture of artificial hearts etc.

EPDM rubber Widely used

in auto parts,building waterproof

materials, wire and cable sheath,

heatresistant rubber hose, autom-otive seals, and other products.

Advantages  Outstanding abrasion resistance Excellent aging, ozone and light stability
Easy to hydrolysis Good resistance to ketones
Good resistance to oils and pressureExcellent resistance to steam
 Extremely high wear resistance

Temperature

range from

–40 °C to +90 °C(-40F to 194F)–40 °C to +150 °C(-40F to +302F)
Hardness: 60-95 Shore A30-90 Shore A
Material

FKM/FPM/Viton

MVQ siliconeNBR/Nitrile
Features

Fluorocarbon seal is commonly

considered to usein mechanical

devices requiring maximum resistance

to elevated temperatures, to many

special medium,and to high vacuum

applications, such as automobile,

vacuum equipment and other

MVQ silicone is a non-toxic material.

Silicone rubber is widely used in

Cookware (Cookware),toys, small

appliances and filter, etc.Since MVQ

silicone has low tensile strength and

abrasion resistance,it cannot be used

 in extremely demanding applications.

Nitrile rubber has good oil resistance,

often used in the manufacture of all

kinds of oil resistant gaskets, seals,

 and rubber hose etc.

Advantages

High chemical stability.

It has excellent resistance in mineral

oils and fats.Special ones having

improved exceptional properties

Good resistant to fungal decay

Has very good cold flexibility

High resistance to dry heat,

ultraviolet light and ozone

Excellent resistance to oils

 Good abrasion resistance

Temperature

 range from

-15℃ to 230℃ (5℉ to 446℉)

–70 °C to +220 °C(-94F to 428F)–40 °C to +120 °C(-4F to 248F)
Hardness: 52-92 Shore A25-90 Shore A40-90 Shore A
Product Standard



PressureSuggest Hardness
0-8Mpa40-70 Shore A
8-10Mpa75 Shore A
10-15Mpa80 Shore A
15-20Mpa85 Shore A
20-30Mpa90 Shore A
Over 30MpaUse with back up ring or change a material



Main Product





Company Information



Our Services



What is your MOQ?

No request of MOQ, but it may influence the price

What is your lead time?

If there is in stock, the lead time will be 2 work-days, if out of stock, it will be about 10 work-days.

Is OEM&ODM accept?

Yes, of course. Please provide sample or drawing

What type of molding process does your company uses?

Compression Molding, Vacuum Compression Molding, Transfer Molding, and Injection Molding

What is your payment?

We accept PayPal, T/T, Western Union, bank transfer.

What is your shipping way?

By express, by sea
